WICSTYLE 65 evo
WICSTYLE 65 evo with its flush leaf design in 65 mm system depth and a comprehensive application range is perfectly quali-fied for the highest demands in design, technological quality and performance. Due to its favourable price/performance ratio it constitutes an economical aluminium door solution for almost any requirement.
Documentation
Characteristics
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
Air permeability
Water tightness
Resistance to wind load
Acoustic Performance
Operating forces
Load bearing capacity of safety devices
Mechanical strength
Repeated opening / closing
Impact resistance
Behaviour between different climates
Burglar resistance
Bullet resistance
Quality assurance
Environmental management
Up to class 4
Up to 7A
Class C2
RW (C; Ctr ) until 42 (–2; –5) dB
Class 2
Fulfilled
Class 3
Up to class 8 (1 000 000 cycles)
Class 1
Up to class 2(e) 2(d)
RC1N, RC2N, RC2, RC3
Up to FB4 NS
Certified according to ISO 9001:2008
Certified according to ISO 14001
Technical performance

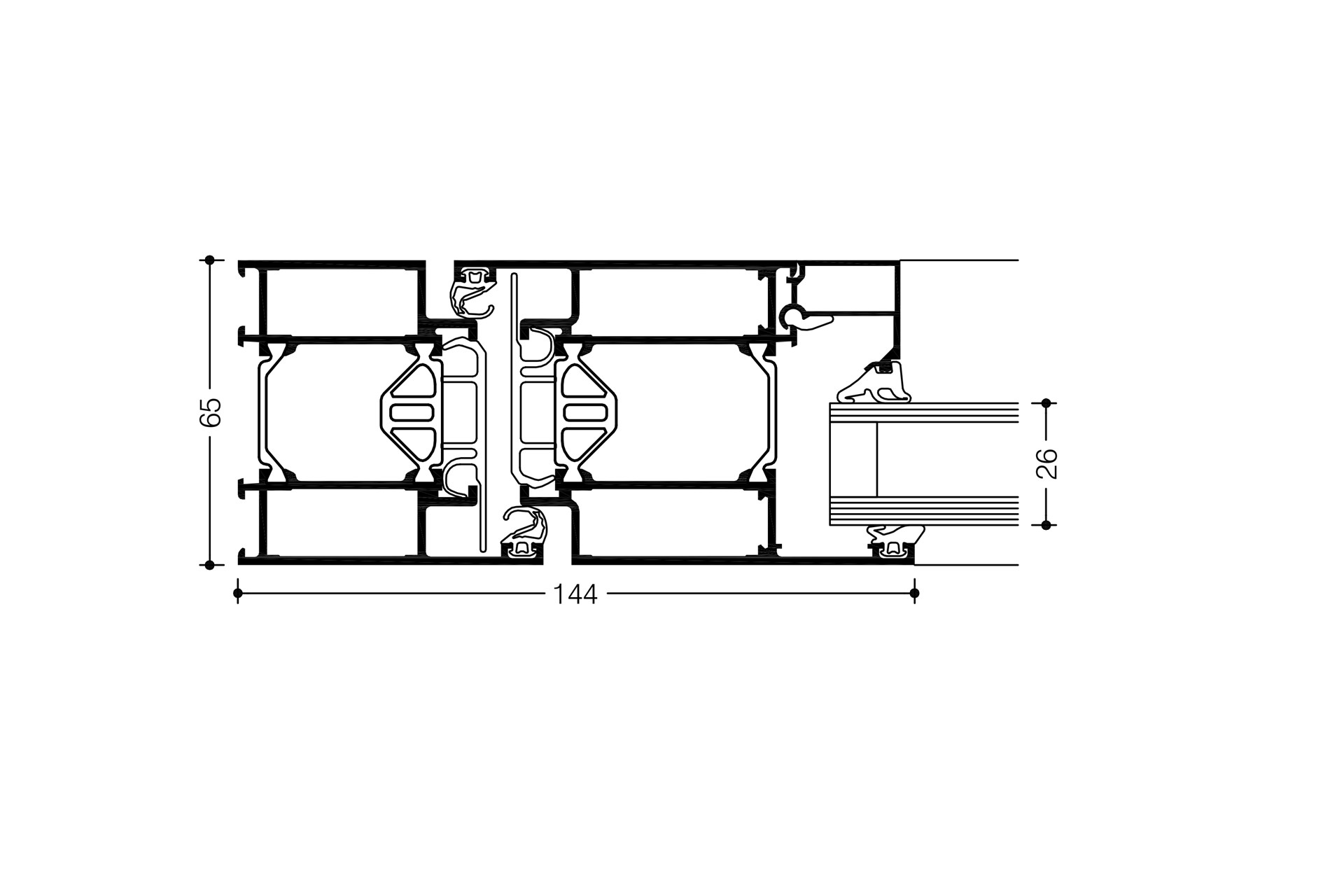

Profile technology
- High insulation multi-chamber system in symmetric design, quality assured thermal insulator connection
- For single and double leaf hinged doors
- For inward and outward opening
- For glass or panels with infill thickness from 3 mm to 50 mm
- Various threshold profiles with or without thermal break, also barrier free
- Fanlights, lateral glazings fixed or openable in combination with WICLINE evo window series
Thermal insulation
- Uf values: from 1.8 to 2.1 W/(m²K)
- Ud values: until 1.3 W/(m²K)
Hardware
- Butt hinge
- Screwed hinge
- Concealed hinge
- Leaf sizes (w x h): 1400 mm x 2520 mm
- Max. leaf weight: until 200 kg, for bullet resistance with additional hinges until 400 kg
Additional designs
- Double action doors
- Integration frame for stick façades
- Burglar resistance in classes RC1 to RC3
- Bullet resistance in class FB4
- Leaf overlapping infill on one side or on both sides
