WICSOLAIRE

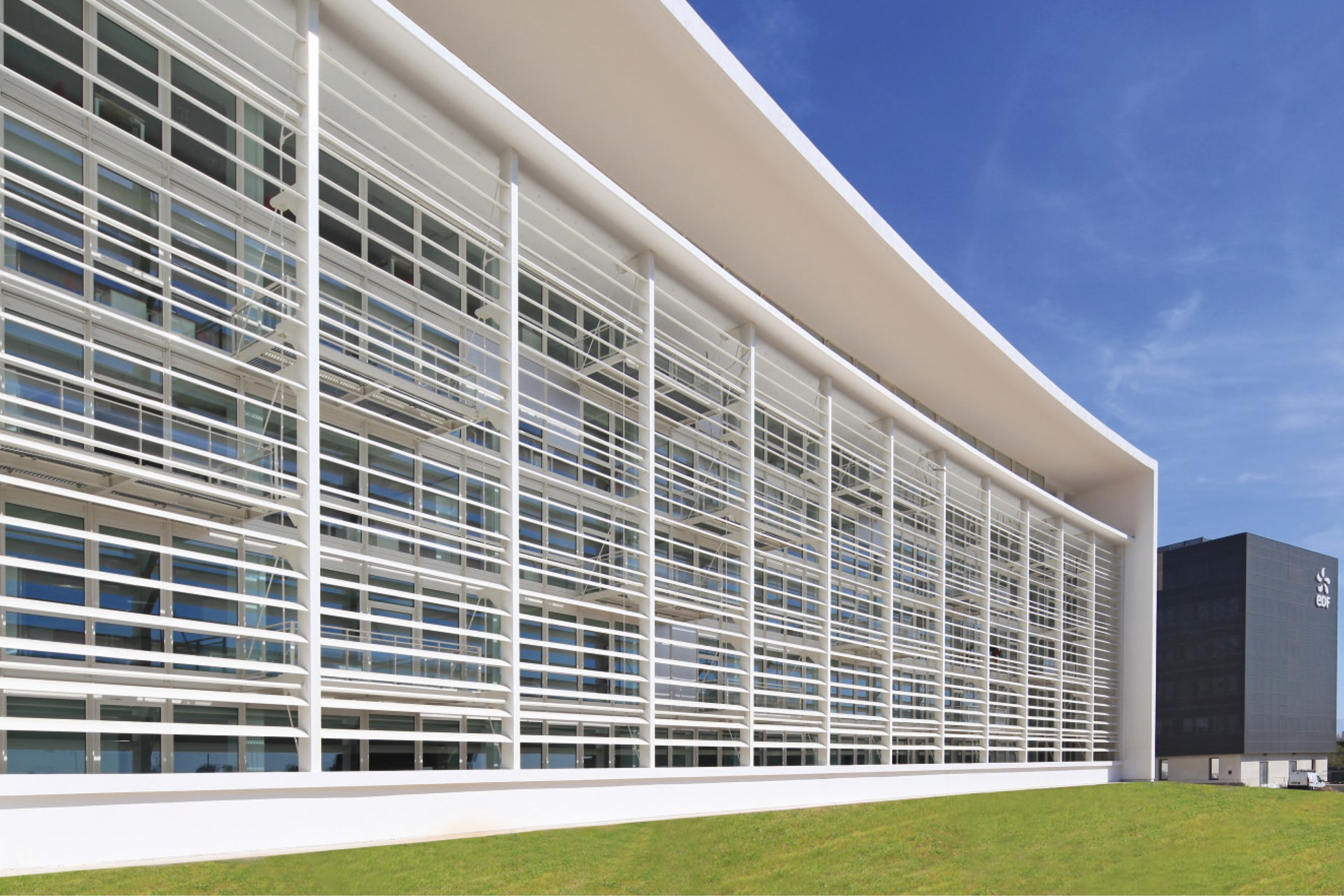

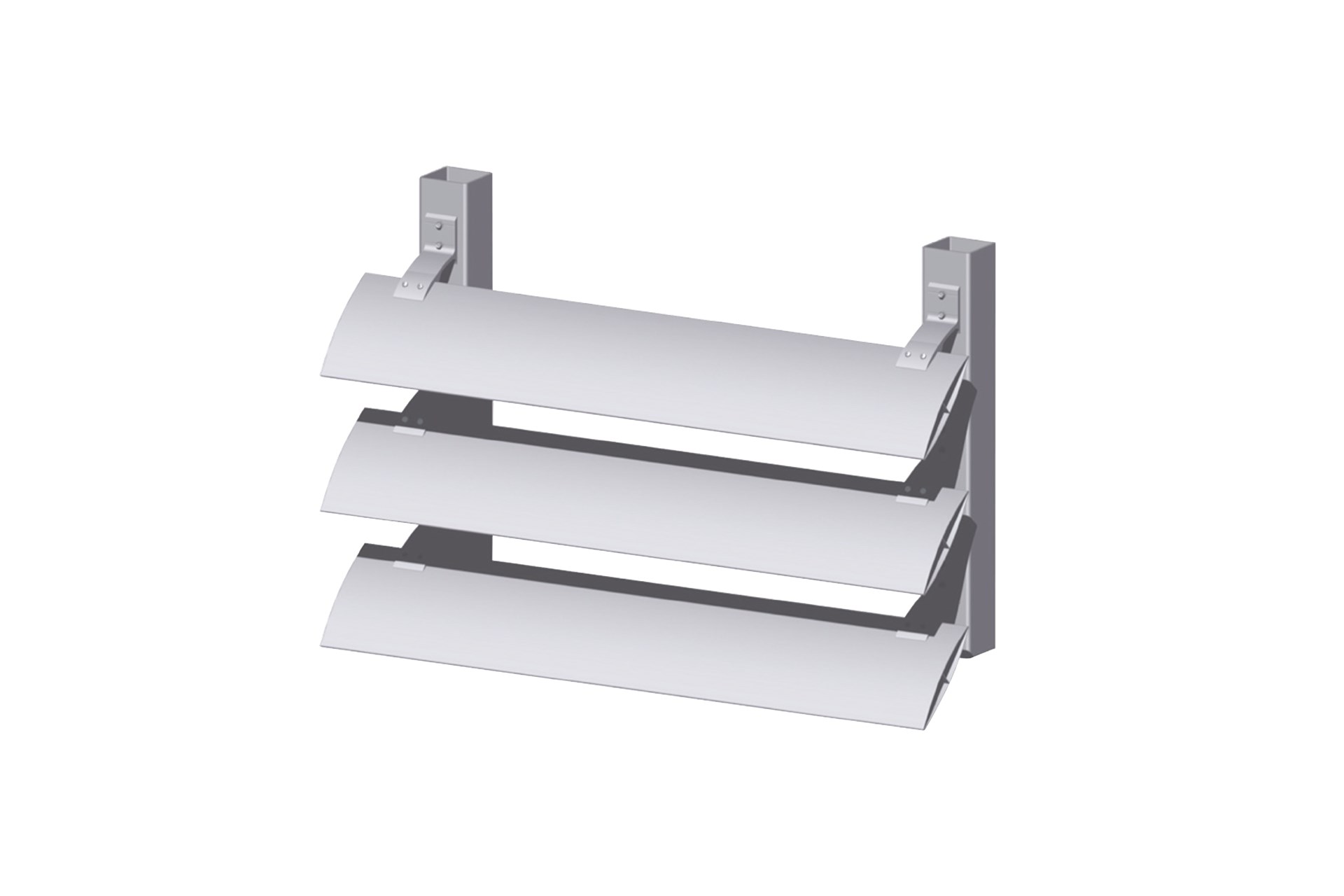

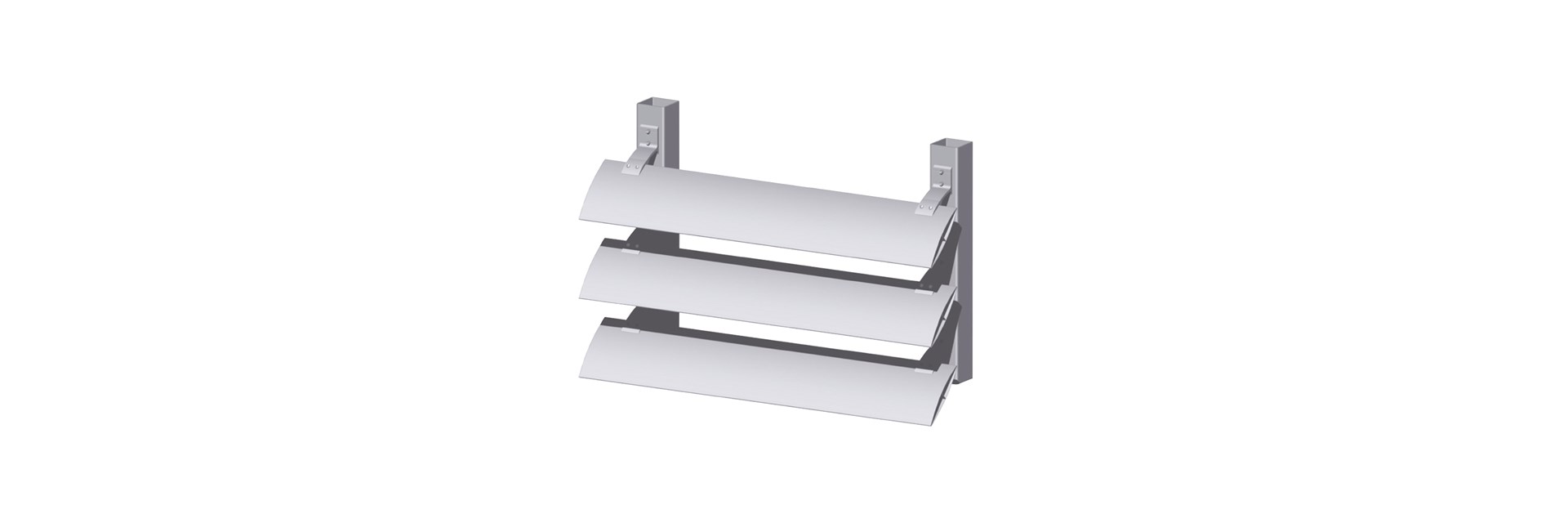

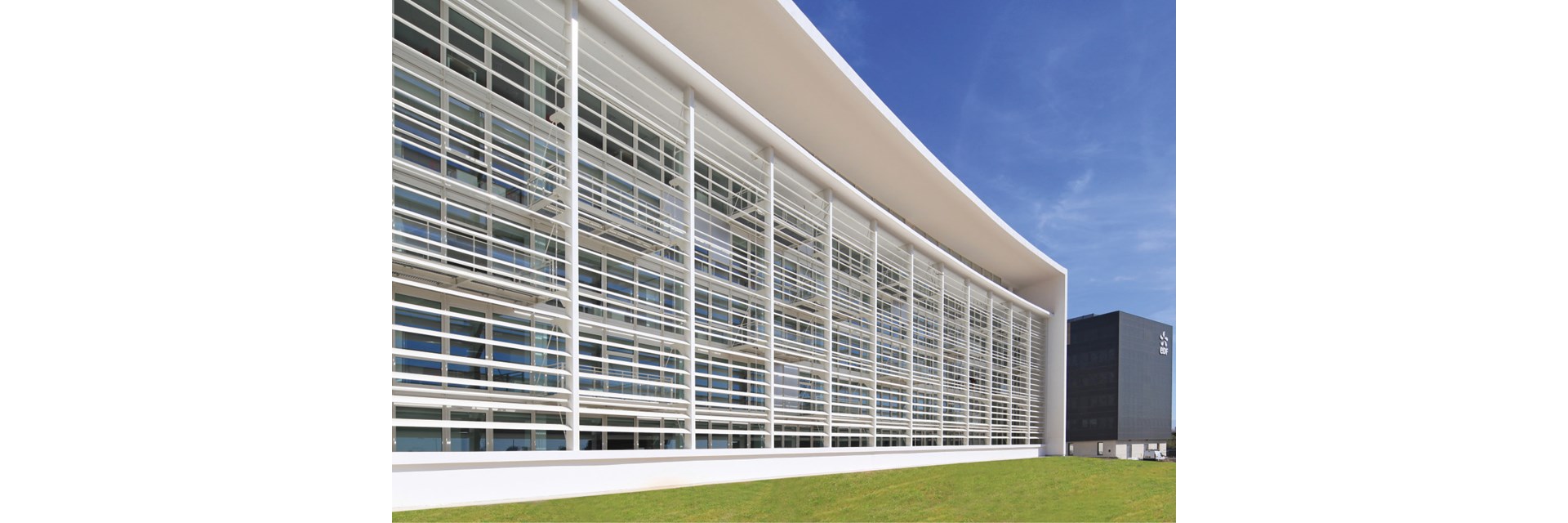

Modern architecture with extended glazed building skins offer increased energy gains from daylight but require an external light control that aligns energy savings, user comfort and economy. WICSOLAIRE sun shading systems guide daylight into the building and thus reduce the need for artificial light. They control the energy and heat input by radiation and reduce the need for air conditioning. The visual contact with the exterior remains and improves the sensation of comfort. As a passive technology, WICSOLAIRE can be adapted in diverse options to the individual requirements and the architectural style of the building. Fixed directly on an independent support structure, WICSOLAIRE offers a maximum choice of applications with vertical or horizontal blade orientation, for canopie or with motorised adjustable orientation.
Dokumentation
Teknisk beskrivning
- Kan anpassas individuellt i storlek och montage efter varje projekts unika krav.
- Bladhållare för montage i 4 vinklar (15° / 30° / 45° / 60°)
- Fasta vinklar från 0° to 45°, från 0° to 60° eller justerbara från 0° to 90°
- Bladdimensioner:
- 120 mm till 270 mm för fästning i stommens frontstruktur (0° to 45°)
- 100 mm to 300 mm (singel profil)
- 350 mm to 600 mm (samansatta profiler) för för fixering emellan stommens stödstruktur.
- 175 mm to 300 mm (half-blades) för fästning i stommens front struktur. - Enkel montering på grund av speciella fixeringsdelar
- Vertikalt, sluttande eller horisontalt montage
